Waterproof Platinum Temperature Sensor PT1000 Thermal Resistance

Name: Waterproof Platinum Temperature Sensor PT1000 Thermal Resistance
Brand: SHELOK
Price: 4.3 USD

Buy cheap Waterproof Platinum Temperature Sensor PT1000 Thermal Resistance product

Brand Name : SHELOK

Model Number : PT1000

Place of Origin : China

MOQ : 1 piece

Price : USD4.3-USD9.6 PER PIECE

Payment Terms : D/A, D/P, T/T, Western Union

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 7days

Packaging Details : Standard carton box

Theory : Thermal resistance

Output : 4-20mA

Description : temperature sensor Pt100

RTD : PT100, PT1000

Accuracy : 1/3DIN(±0.1℃), Grade A(±0.15℃), Grade B(±0.3℃)

Temp. range : 1/3DIN: 0~+150℃; Grade A: -50~+300℃; Grade B: -70~

Shell size : Diameter: 3~9mm, length: 3mm~1000mm

Shell material : Stainless steel, copper, copper plated nickel, aluminum, ABS, P

Product Name : Platinum thermal resistance SMD PT100 temperature sensor

Contact Now

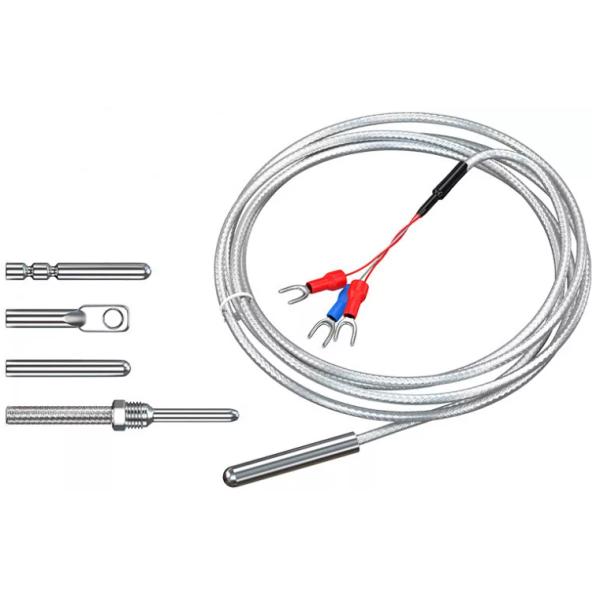

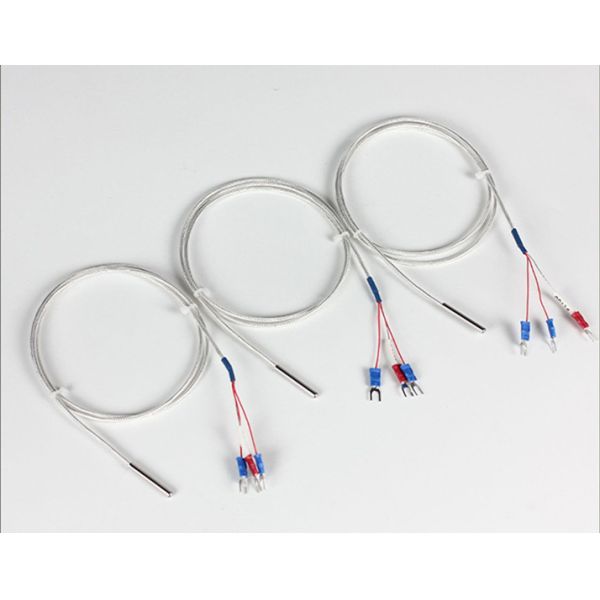

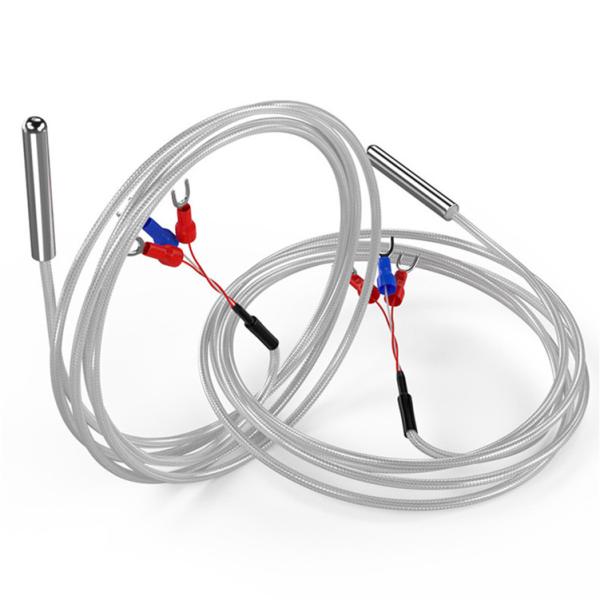

Waterproof platinum thermal resistance temperature sensor PT1000

Waterproof Platinum Temperature Sensor PT1000 Thermal Resistance

Description Waterproof platinum thermal resistance temperature sensor PT1000

PT100/Pt1000 Using stainless steel probe, internal chip imported from Germany, welded by welding machine, using 304 stainless steel tube. Liquids (water, oil), gases (air, steam) can be measured. The temperature range from -50C to 250C can be measured, and the temperature measurement needs of various occasions can be customized.The lead wire is anti-corrosion, water-proof, oil-proof and high-temperature resistant polyethylene three-core shielded PTFE wire. It is characterized by high measurement accuracy and stable performance. It is used for temperature measurement of liquid temperature, gas temperature, etc.

Specification Waterproof platinum thermal resistance temperature sensor PT1000

Technical indicators:
	PT100, PT1000
RTD

	1/3DIN(±0.1℃), Grade A(±0.15℃), Grade B(±0.3℃)
Accuracy

	1/3DIN: 0~+150℃; Grade A: -50~+300℃; Grade B: -70~+500℃;
Temp. range

	Diameter: ¢ 3~ ¢ 9mm, length: 3mm~1000mm
Shell size

	Stainless steel, copper, copper plated nickel, aluminum, ABS, PVC.
Shell material

	Supply line number, using temp. range, outside diameter and material requirements.
Wire

	Molex,JST,DuPont,CWB,CJT,etc.
Connector

	Heat shrinkable tube; PVC tube; glass fiber tube
Drivepipe

Features Waterproof platinum thermal resistance temperature sensor PT1000

1.High precision, good stability; 2.High sensitivity, good linear;
3.Response time short,good compatibility;
4.Compact structure, easy installation, waterproof good

Application Waterproof platinum thermal resistance temperature sensor PT1000

Waterproof Platinum Temperature Sensor PT1000 Thermal Resistance
