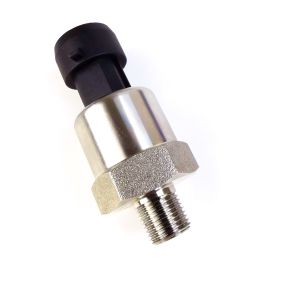

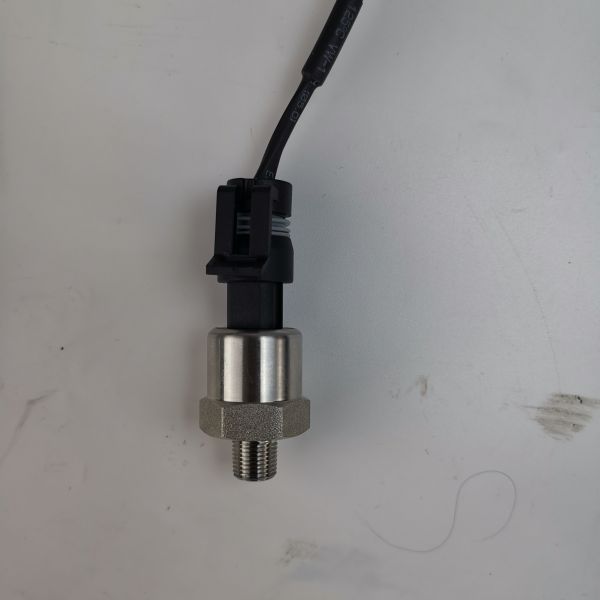

Low Cost Pump Tank Pipe Purifiers Smart Water Pressure Sensor Price 5V
Description Low Cost Pump Tank Pipe Purifiers Smart Water Pressure Sensor Price 5V
smart water pressure sensor is a commonly used pressure sensor in industrial practice. It is widely used in various industrial dynamic environments, water conservancy and hydropower engineering, transportation and construction equipment, production automatic control systems, aerospace technology, ship technology, transportation pipelines and other areas.
Parameter Low Cost Pump Tank Pipe Purifiers Smart Water Pressure Sensor Price 5V
| RANGE: | 0-5psi~15psi~30psi~60psi~80psi~100psi~150psi~200psi~300psi~500psi~1000psi~1600psi~2500psi~3000psi~4000psi |
| OUTPUT: | 0.5~4.5Vdc |
| POWER: | 5Vdc |
ACCURACY: | 0.5%FS~1%FS |
| MOUNTING THREAD: | NPT1/8 |
| MATERIAL: | 304 stainless steel |
TEMPERATURE RANGE: | -40~125℃ |
| PACKAGING: | Anti-electrostatic packaging |
PROTECTING: | Reverse polarity protection, overcurrent protection,overvoltage protection,anti-interference design |
Ordering Information Low Cost Pump Tank Pipe Purifiers Smart Water Pressure Sensor Price 5V
| Model | YD35 |
| | Range | K:0~X kPa P: PSI, K: kPa, B: bar, M:MPa, m: mH2O |
| | | Accuracy | 1: 1%FS; 2: 0.5%FS; 3: 0.25%FS; |
| | | | Output | M:mV, V1:0.5-4.5V; V2:0-5V; V3:0-10V; A:4-20mA; S:RS485 S0:others |
| | | | | Power | P1:5VDC, P2:12-32VDC P0: other |
| | | | | | Connection | N1: NPT1/8; N2: NPT1/4; NPT1/2; G1:G1/8 ; G2:G1/4; G3:G1/2;
M0:other |
| | | | | | | |
| | | | | | | Wiring | W1:Cable, W2:Horsman W3:Pakard W4:M12 |
| | | | | | | | Temperature | T1: -20~125℃; T0:other |
| YD35 | 10b | 2 | A | P2 | M1 | W2 | T1 | | | Factory code |
Features Low Cost Pump Tank Pipe Purifiers Smart Water Pressure Sensor Price 5V
Compact,rugged design,light weight
Low-cost,high- quality
Large temperature high accuracy
Over voltage,short circuit,anti-reverse protection
Water proof and dustproof electrical connectors
Applications Low Cost Pump Tank Pipe Purifiers Smart Water Pressure Sensor Price 5V
Air compressor,sprayer,water pump controller,water heaters,water supply system,hydraulic system
